Compatible Male Female Medical LM Push Pull Metal Connectors And Circular Cables.
UPE company is a modern enterprise dedicated to the research and development, production and sales of industrial connectors for ten years. Since its establishment, it has continuously adopted sincere suggestions from customers in various industries and has continuously absorbed international advanced technology and design. Philosophy, through the hard work of our R&D team, customer-oriented, provide personalized solutions, continuous product innovation, and obtain a number of patents and certifications. The company adheres to the business philosophy of "innovation and pursuit, truth-seeking and benevolence". Now it has established good and stable partnerships with many well-known brand companies at home and abroad, gradually forming advantages in technology and brand, and always providing customers with high-quality products and excellent products. Service, and constantly strengthen and improve the overall quality of the company, seek development in the competition, seek opportunities in the challenge, UPE is willing to sincerely work with you to advance together to create brilliant.
Application:Industrial Automation,Camera,Industrial Machinery,Navigation,Communication,Medical,Mapping,Aerospace,Security,Electronic Equipment,Automotive
|
|

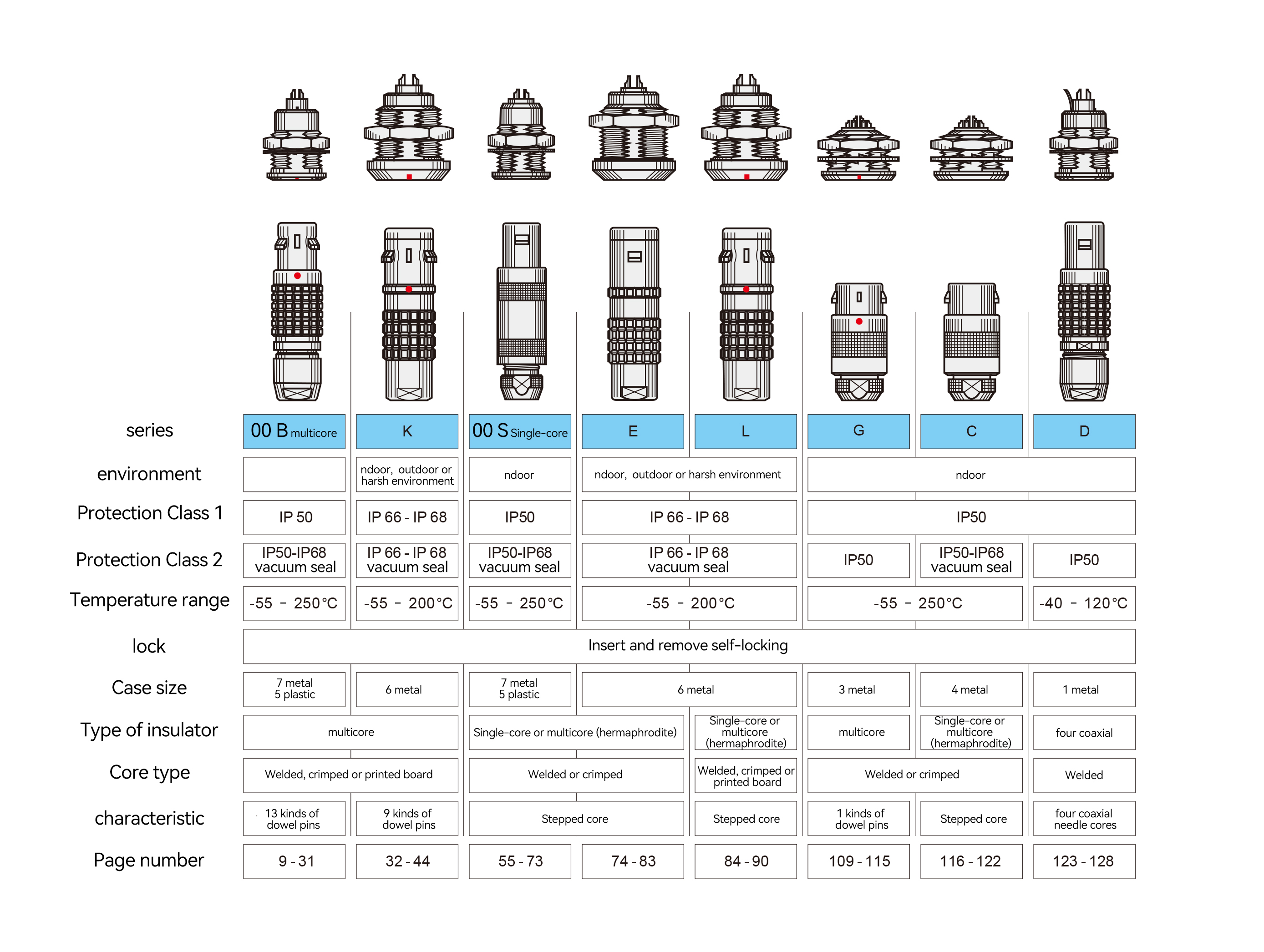

model | Needle configuration | Shell material | insulator Material | needle core | wire clamp | variable parameter |
| B series | 12 | 45 | 50 | 50 | 50 | 52 | 54 |
| K series | 34 | 45 | 50 | 50 | 50 | 53 | 54 |
| S series | 58 | 91 | 99 | 99 | 99 | 102 | 107 |
| E series | 76 | 91 | 99 | 99 | 99 | 105 | 107 |
| L series | 86 | 92 | 99 | 99 | 99 | 106 | 107 |
| G series | 111 | 112 | 112 | 110 | 113 | 112 | 113 |
| C series | 117 | 120 | 120 | 116 | 120 | 121 | 121 |
| 1D series | 125 | 127 | 127 | 124 | 127 | 127 | 128 |
Basic Product Information
| Gender | Male/Female |
| Coding | G KEY |
| Locking Type | Quick lock,Self Locking,Quick Release |
| Mounting Type | Cables Assembly,Panel mounted |
| Part No. | Self locking connector |
General Infomation
| Ambient Temperature | -55℃~200℃ | Mating Endurance | >5000 cycles |
| Insulator | PEEK | Connector Contacts | Brass with Gold Plated |
| Coupling Nut/Screw | Brass with Nickel Plated | Housing | Brass with Cr Plated |
| Seal/o-ring | ///// | Insulation resistance | ≥100MΩ |
| IP Rating | IP50-IP68 in locked condition | Shielding efficiency | at 10MHz>95dB / at 1GHz>80dB |
| Salt spray Corrosiom test | >144h | Certificate | UL/CE/ROHS/REACH/IP50 |
| Characteristics | Parameter |
| Locking Type | Push pull self-latching type |
| Operation Temperature | -55~200°C |
| Max Humidity | up to 95% @ 60°C / 140°F |
| Shielding Efficiency | 75dB (10MHz) 40dB (1GHz) |
| Resistance To Vibration | 15g (10Hz~2000Hz) |
| Salt Spray Corrosion Test | 96 Hr |
| Shock Resistance | 100g,6ms |
| Endurance | 5000 cycles |
| Protection Index(mated) | IP50-IP68 |
| Pin Qty | 2-32 contacts |
| Operation Voltage | 110v-550v |
| Compatibility | Option |
| Suitable Cable OD | 3.0~5.0 mm |
| Insulation Material | PPS |
| Out Shell Material | Chrome Plated Brass |
| Contact Type | Solder Male |
Production flow:
Packaging:
|
|
Compatible Male Female Medical LM Push Pull Metal Connectors And Circular Cables Images
|
